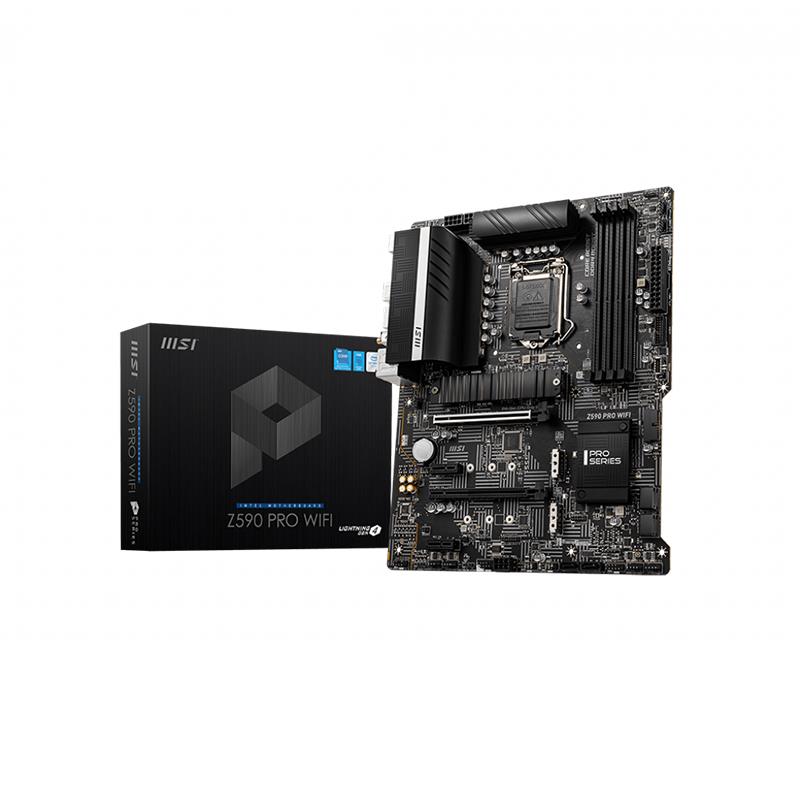

MOTHER MSI Z590 PRO WIFI Socket LGA1200 DDR4/ 2-Way CrossFire/ SATA3&USB3.2
CODIGO: 08928
MARCA: MSI
Mfr Part Number: Z590PWIFI (Z590 PRO WIFI)
Processor:
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors , Pentium Gold and Celeron Processors
Processor socket LGA1200
Chipset: Intel Z590 Chipset
Memory:
4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333 MHz
- 1DPC 2R Max speed up to 4700+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slots:
2x PCIe x16 slots
- Support x16/ x4
- PCI_E1 (from CPU)
- Supports up to PCIe 4.0 for 11th Gen Intel CPU
- Supports up to PCIe 3.0 for 10th Gen Intel CPU
- PCI_E3 (from Z590 chipset)
- Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)
Onboard Graphics:
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Multi-GPU: Supports 2-Way AMD CrossFire Technology
Storage:
6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Available only on 11th Gen Intel CPU
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 & M2_3 slots (From Z590 Chipset)
- Support up to PCIe 3.0 x4
- Support up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
RAID:
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB:
Intel Z590 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
- 4x USB 2.0 Type-A ports on the back panel
- 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio:
Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
LAN: 1x Intel I225-V 2.5Gbps LAN controller
Intel WI-FI 6E AX210:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
Internal Connectors:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)
Back Panel Ports:
Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Dimensions:
ATX Form Factor
Processor:
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors , Pentium Gold and Celeron Processors
Processor socket LGA1200
Chipset: Intel Z590 Chipset
Memory:
4x DDR4 memory slots, support up to 128GB
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333 MHz
- 1DPC 2R Max speed up to 4700+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slots:
2x PCIe x16 slots
- Support x16/ x4
- PCI_E1 (from CPU)
- Supports up to PCIe 4.0 for 11th Gen Intel CPU
- Supports up to PCIe 3.0 for 10th Gen Intel CPU
- PCI_E3 (from Z590 chipset)
- Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)
Onboard Graphics:
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Multi-GPU: Supports 2-Way AMD CrossFire Technology
Storage:
6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Available only on 11th Gen Intel CPU
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 & M2_3 slots (From Z590 Chipset)
- Support up to PCIe 3.0 x4
- Support up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
RAID:
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB:
Intel Z590 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
- 4x USB 2.0 Type-A ports on the back panel
- 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Audio:
Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
LAN: 1x Intel I225-V 2.5Gbps LAN controller
Intel WI-FI 6E AX210:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
Internal Connectors:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)
Back Panel Ports:
Keyboard / Mouse
DisplayPort
USB 2.0
LAN port
WIFI / Bluetooth
Audio connector
Flash BIOS Button
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
Dimensions:
ATX Form Factor
ARS 242746,21
AGREGAR AL CARRITO
PRECIO CONTADO EFECTIVO, DEPOSITO O TRANSFERENCIA
TAMBIEN PODES PAGAR CON TARJETA (PRECIO DE LISTA)
